I’m Loco and Handrolled My Own Firewall And It’s Never Been Better
Well…
First things first, I’ve never really had issues with pfsense and never tried opnsense that being said I have always been suspicious of both.
I had no reason to be, I just was. I wanted to know how my firewall worked. I wanted to be closer to the “metal”. I wanted to hand-roll my config and know what everything does. This is akin to doing a Linux-From-Scratch build of Linux on your main pc. You learn very deeply how things work.
I’m sure they’re great! with equally great teams behind them of passionate folks who want to make secure firewalls and routers available to everyone.
So … if it wasn’t broke, why fix it?
I Dunno I Just Wanted To
Anyways, not the point of the post. The point of this is to help folks who run across a COATES-6412-NA.2 small industrial PC, it might also be branded an ElementHL-FE box. They usually require an external power brick (get a decent quality 12v 5a brick), have lower power cpus, and this particular one is fanless.
In any case they’re usually used for kiosks, digital signs, etc.
The thing that makes them popular with the home-lab, enthusiast community is that while the consumer version of this device often has realtek ethernet nics (which are horrible in FreeBSD and OpenBSD, but fine in Linux) this one has intel 210 ethernet nics which are as solid as they come.
So I Did Just That
I read the FreeBSD handbook and with DeepSeek v4 Flash (4.1) as a guide I handrolled dnsmasq (dns caching and dhcp), my pf.conf (firewalling), setup routing, configured FreeBSD etc and it’s been a gem. Everything runs smoothly. It’s really overkill for what we do but that means I have a lot of headroom.

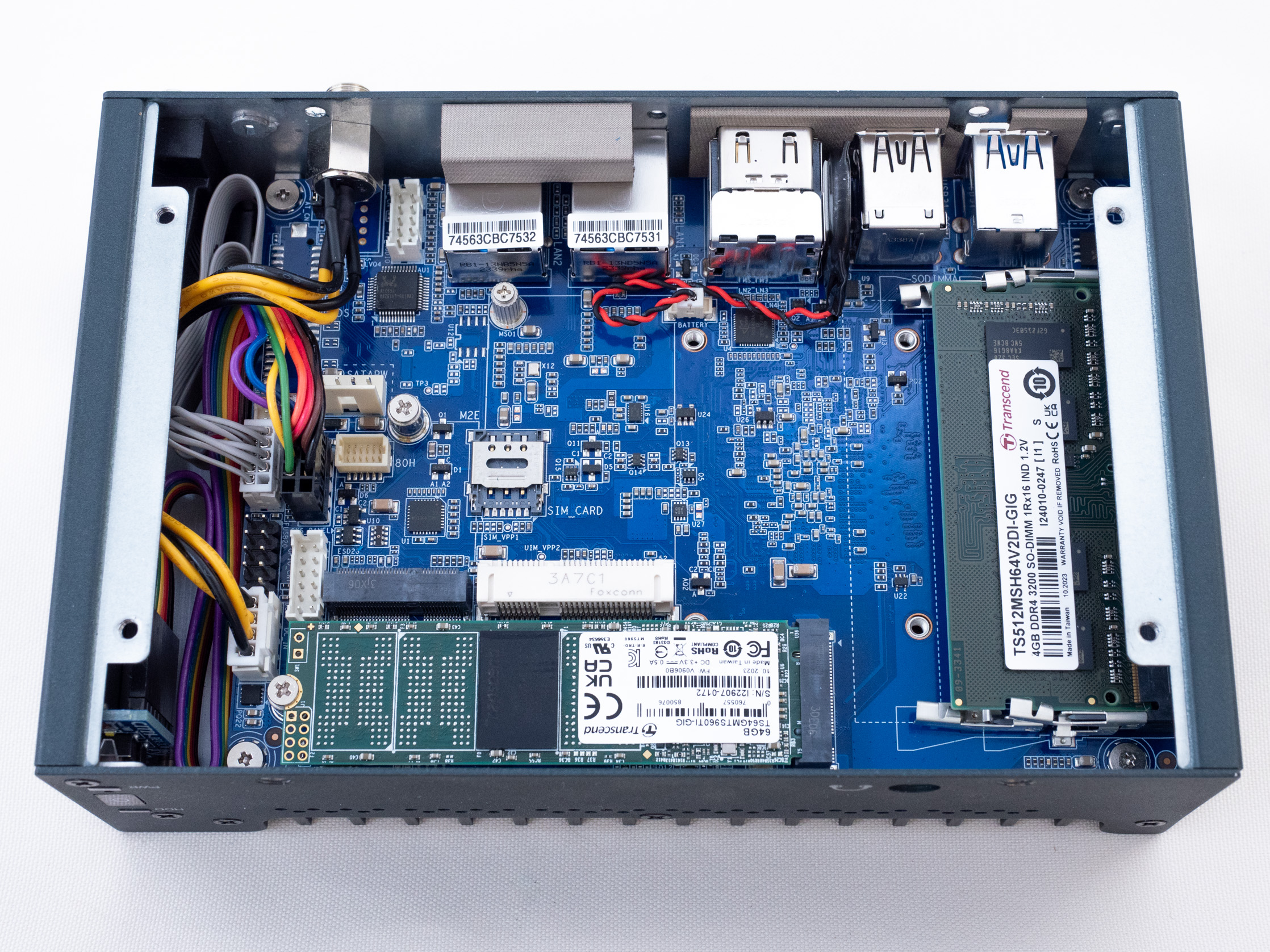

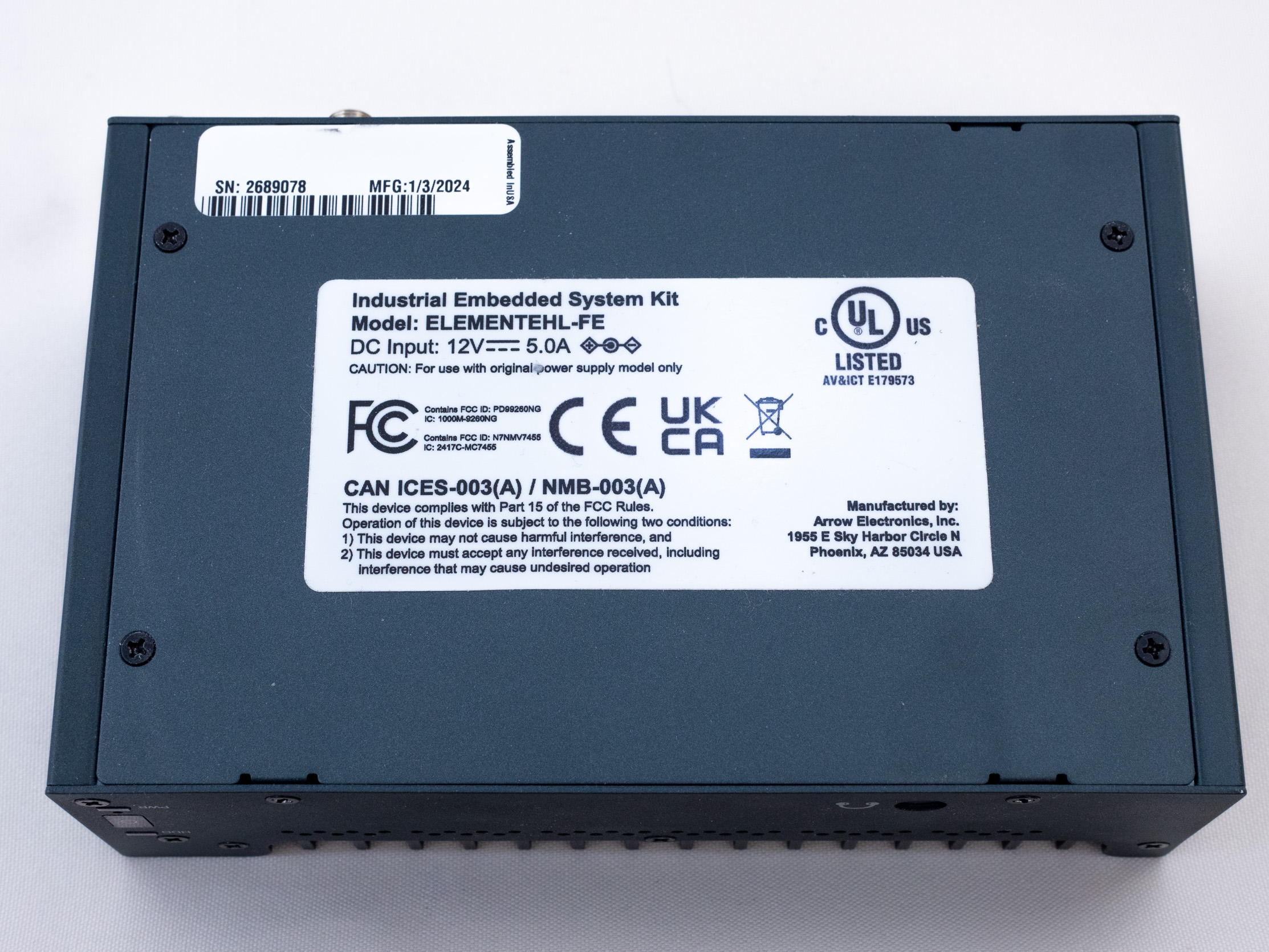

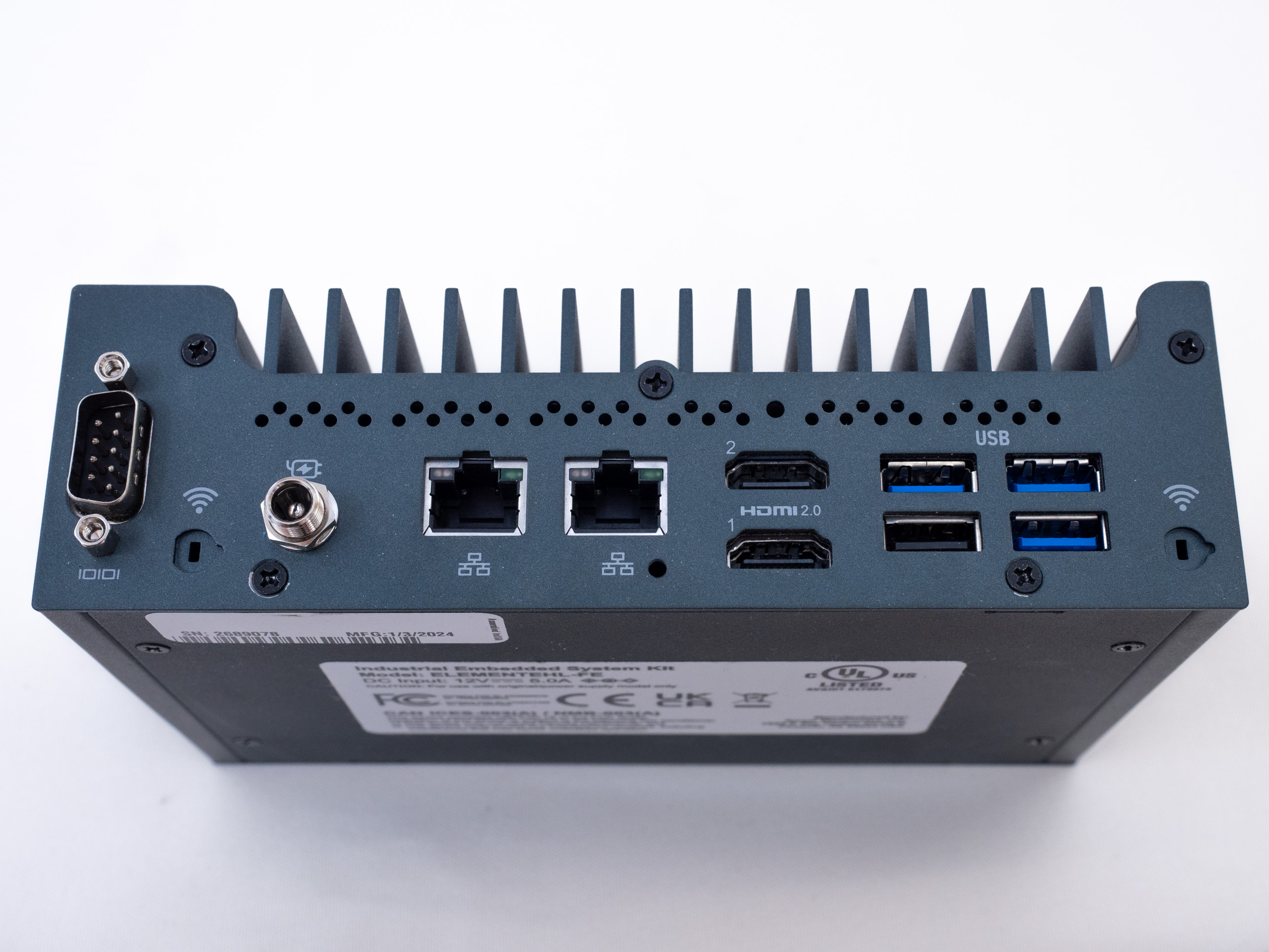

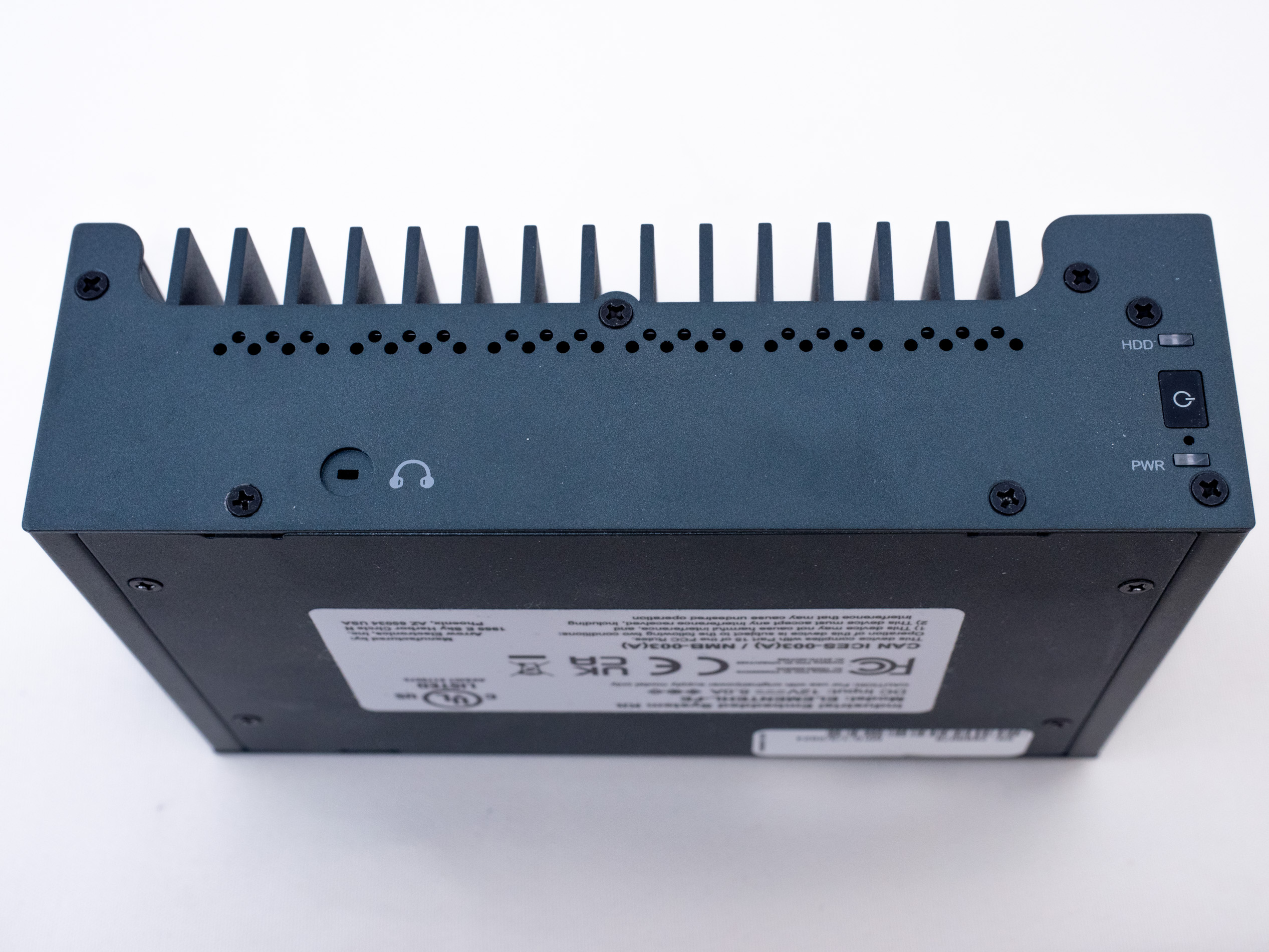

Photos

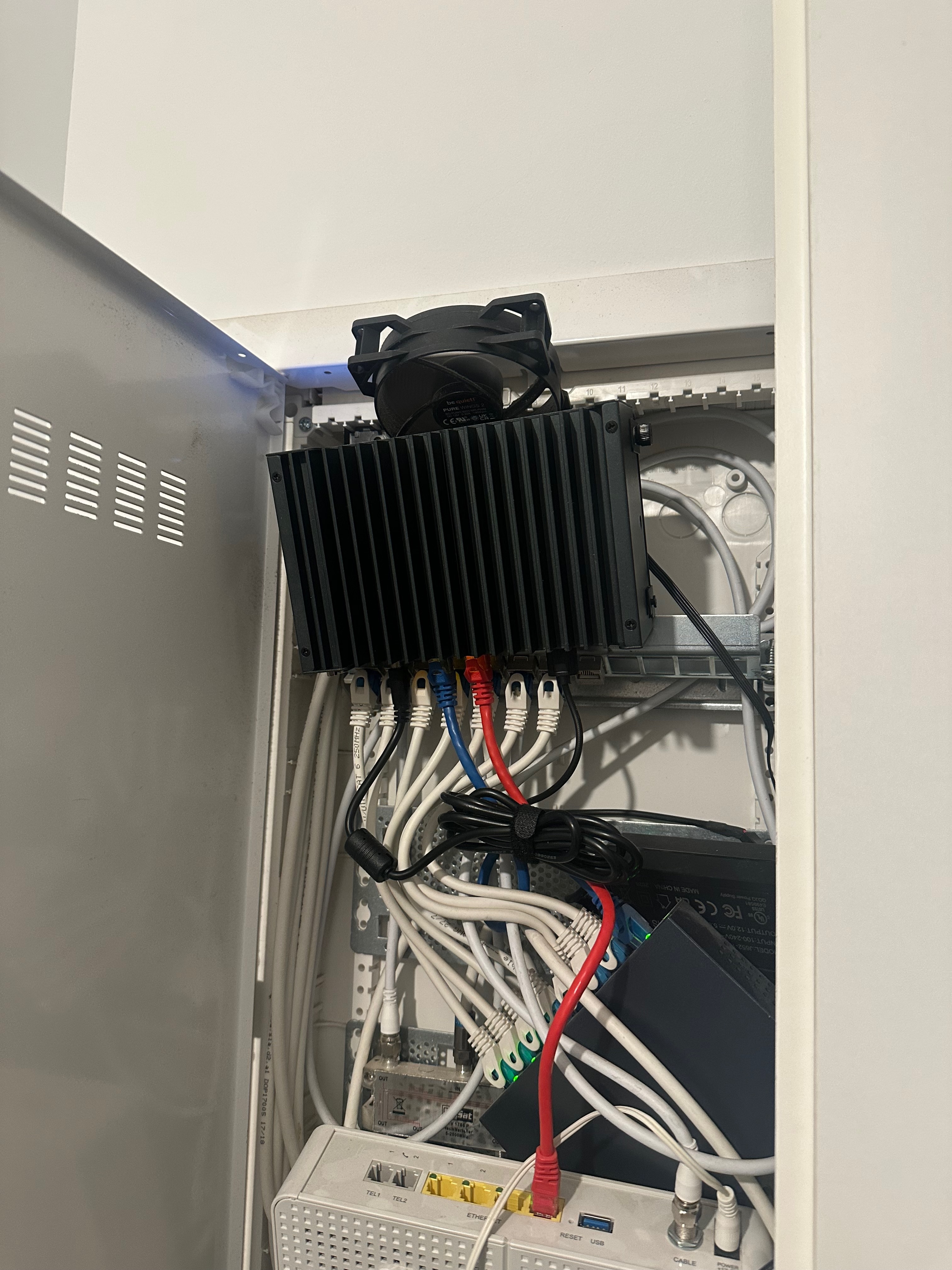

And finally how it’s setup in my laundry closet, every homelabber’s data center ;-):
If you’re shopping around and find one and wonder what hardware it’s running, here you go:
DMESG
---<<BOOT>>---
Copyright (c) 1992-2025 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 15.1-RELEASE releng/15.1-n283562-96841ea08dcf GENERIC amd64
FreeBSD clang version 19.1.7 (https://github.com/llvm/llvm-project.git llvmorg-19.1.7-0-gcd708029e0b2)
VT(vga): resolution 640x480
CPU: Intel(R) Celeron(R) J6412 @ 2.00GHz (1996.80-MHz K8-class CPU)
Origin="GenuineIntel" Id=0x90661 Family=0x6 Model=0x96 Stepping=1
Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
Features2=0x4ff8ebbf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,SDBG,CX16,xTPR,PDCM,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,TSCDLT,AESNI,XSAVE,OSXSAVE,RDRAND>
AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
AMD Features2=0x101<LAHF,Prefetch>
Structured Extended Features=0x2394a2c3<FSGSBASE,TSCADJ,FDPEXC,SMEP,ERMS,NFPUSG,PQE,RDSEED,SMAP,CLFLUSHOPT,CLWB,PROCTRACE,SHA>
Structured Extended Features2=0x18400124<UMIP,WAITPKG,GFNI,RDPID,MOVDIRI,MOVDIR64B>
Structured Extended Features3=0xfc000400<MD_CLEAR,IBPB,STIBP,L1DFL,ARCH_CAP,CORE_CAP,SSBD>
XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES>
IA32_ARCH_CAPS=0xc6b<RDCL_NO,IBRS_ALL,SKIP_L1DFL_VME,MDS_NO>
VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID,VID,PostIntr
TSC: P-state invariant, performance statistics
real memory = 4294967296 (4096 MB)
avail memory = 3973754880 (3789 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <GBT GBTUACPI>
WARNING: L1 data cache covers fewer APIC IDs than a core (0 < 1)
FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs
FreeBSD/SMP: 1 package(s) x 4 core(s)
random: registering fast source Intel Secure Key Seed
random: fast provider: "Intel Secure Key Seed"
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-119
Launching APs: 2 3 1
random: entropy device external interface
kbd0 at kbdmux0
efirtc0: <EFI Realtime Clock>
efirtc0: registered as a time-of-day clock, resolution 1.000000s
smbios0: <System Management BIOS> at iomem 0x7ba3e000-0x7ba3e017
smbios0: Entry point: v3 (64-bit), Version: 3.3
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS,SHA1,SHA256>
acpi0: <GBT GBTUACPI>
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 19200000 Hz quality 950
Event timer "HPET" frequency 19200000 Hz quality 550
Event timer "HPET1" frequency 19200000 Hz quality 440
Event timer "HPET2" frequency 19200000 Hz quality 440
Event timer "HPET3" frequency 19200000 Hz quality 440
Event timer "HPET4" frequency 19200000 Hz quality 440
atrtc1: <AT realtime clock> on acpi0
atrtc1: Warning: Couldn't map I/O.
atrtc1: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x1808-0x180b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
vgapci0: <VGA-compatible display> port 0x3000-0x303f mem 0x6000000000-0x6000ffffff,0x4000000000-0x400fffffff at device 2.0 on pci0
vgapci0: Boot video device
xhci0: <Intel Elkhart Lake USB 3.1 controller> mem 0x6001000000-0x600100ffff at device 20.0 on pci0
xhci0: 32 bytes context size, 64-bit DMA
xhci0: xECP capabilities <PROTO,PROTO,VEND(c0),LEGACY,VEND(c6),VEND(c7),VEND(c2),DEBUG,VEND(c3),VEND(c4),VEND(ce),VEND(c8),VEND(c9),VEND(ca),VEND(cb),VEND(cc),VEND(cd)>
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
pci0: <memory, RAM> at device 20.2 (no driver attached)
pci0: <simple comms> at device 22.0 (no driver attached)
ahci0: <Intel Elkhart Lake AHCI SATA controller> port 0x3090-0x3097,0x3080-0x3083,0x3060-0x307f mem 0x80200000-0x80201fff,0x80203000-0x802030ff,0x80202000-0x802027ff at device 23.0 on pci0
ahci0: AHCI v1.31 with 2 6Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
pcib1: <ACPI PCI-PCI bridge> at device 28.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pcib2: <ACPI PCI-PCI bridge> at device 28.2 on pci0
pci2: <ACPI PCI bus> on pcib2
igb0: <Intel(R) I210 Flashless (Copper)> port 0x4000-0x401f mem 0x80100000-0x8011ffff,0x80120000-0x80123fff at device 0.0 on pci2
igb0: NVM V0.6 imgtype5
igb0: Using 1024 TX descriptors and 1024 RX descriptors
igb0: Using 4 RX queues 4 TX queues
igb0: Using MSI-X interrupts with 5 vectors
igb0: Ethernet address: 74:56:3c:bc:6f:51
igb0: netmap queues/slots: TX 4/1024, RX 4/1024
pcib3: <ACPI PCI-PCI bridge> at device 28.3 on pci0
pci3: <ACPI PCI bus> on pcib3
igb1: <Intel(R) I210 Flashless (Copper)> port 0x5000-0x501f mem 0x80000000-0x8001ffff,0x80020000-0x80023fff at device 0.0 on pci3
igb1: NVM V0.6 imgtype5
igb1: Using 1024 TX descriptors and 1024 RX descriptors
igb1: Using 4 RX queues 4 TX queues
igb1: Using MSI-X interrupts with 5 vectors
igb1: Ethernet address: 74:56:3c:bc:6f:52
igb1: netmap queues/slots: TX 4/1024, RX 4/1024
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
pci0: <serial bus> at device 31.5 (no driver attached)
battery0: <ACPI Control Method Battery> on acpi0
acpi_acad0: <AC Adapter> on acpi0
acpi_button0: <Sleep Button> on acpi0
acpi_button1: <Power Button> on acpi0
acpi_tz0: <Thermal Zone> on acpi0
uart: ns8250: UART FCR is broken (0x1)
uart0: <16950 or compatible> port 0x3f8-0x3ff irq 3 flags 0x10 on acpi0
uart0: console (115200,n,8,1)
acpi_syscontainer0: <System Container> on acpi0
acpi_syscontainer1: <System Container> on acpi0
atrtc0: <AT realtime clock> at port 0x70 irq 8 on isa0
atrtc0: Warning: Couldn't map I/O.
atrtc0: registered as a time-of-day clock, resolution 1.000000s
atrtc0: Can't map interrupt.
atrtc0: non-PNP ISA device will be removed from GENERIC in FreeBSD 16.
hwpstate_intel0: <Intel Speed Shift> on cpu0
cpufreq0: <CPU frequency control> on cpu0
hwpstate_intel1: <Intel Speed Shift> on cpu1
cpufreq1: <CPU frequency control> on cpu1
hwpstate_intel2: <Intel Speed Shift> on cpu2
cpufreq2: <CPU frequency control> on cpu2
hwpstate_intel3: <Intel Speed Shift> on cpu3
cpufreq3: <CPU frequency control> on cpu3
Timecounter "TSC" frequency 1996803179 Hz quality 1000
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ugen0.1: <Intel XHCI root HUB> at usbus0
Trying to mount root from zfs:zroot/ROOT/default []...
uhub0 on usbus0
uhub0: <Intel XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
ada0 at ahcich1 bus 0 scbus1 target 0 lun 0
ada0: <TS64GMTS960TI-GIG V0906B0> ACS-2 ATA SATA 3.x device
ada0: Serial Number I229074000
ada0: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 512bytes)
ada0: Command Queueing enabled
ada0: 61057MB (125045424 512 byte sectors)
uhub0: 16 ports with 16 removable, self powered
ichsmb0: <Intel Elkhart Lake SMBus controller> port 0xefa0-0xefbf mem 0x6001014000-0x60010140ff at device 31.4 on pci0
smbus0: <System Management Bus> on ichsmb0
acpi_wmi0: <ACPI-WMI mapping> on acpi0
acpi_wmi0: cannot find EC device
acpi_wmi1: <ACPI-WMI mapping> on acpi0
acpi_wmi1: cannot find EC device
acpi_wmi1: Embedded MOF found
acpi_wmi2: <ACPI-WMI mapping> on acpi0
acpi_wmi2: cannot find EC device
acpi_wmi2: Embedded MOF found
igb0: changing name to 'wan'
igb1: changing name to 'lan'
lo0: link state changed to UP
Security policy loaded: MAC/ntpd (mac_ntpd)
lan: link state changed to UP
lan: link state changed to DOWN
lan: link state changed to UP
lan: link state changed to DOWN
lan: link state changed to UP
wan: link state changed to UP
wan: promiscuous mode enabled
wan: promiscuous mode disabled
wan: promiscuous mode enabled
wan: promiscuous mode disabled
wan: promiscuous mode enabled
wan: link state changed to DOWN
wan: promiscuous mode disabled
wan: link state changed to UP
wan: link state changed to DOWN
wan: link state changed to UP
wan: link state changed to DOWN
wan: link state changed to UP
pflog0: promiscuous mode enabled
pflog0: promiscuous mode disabled
Waiting (max 60 seconds) for system process `vnlru' to stop... done
Waiting (max 60 seconds) for system process `syncer' to stop...
Syncing disks, vnodes remaining... 0 0 done
All buffers synced.
Uptime: 39m44s
---<<BOOT>>---
Copyright (c) 1992-2025 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 15.1-RELEASE releng/15.1-n283562-96841ea08dcf GENERIC amd64
FreeBSD clang version 19.1.7 (https://github.com/llvm/llvm-project.git llvmorg-19.1.7-0-gcd708029e0b2)
VT(vga): resolution 640x480
CPU: Intel(R) Celeron(R) J6412 @ 2.00GHz (1996.80-MHz K8-class CPU)
Origin="GenuineIntel" Id=0x90661 Family=0x6 Model=0x96 Stepping=1
Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
Features2=0x4ff8ebbf<SSE3,PCLMULQDQ,DTES64,MON,DS_CPL,VMX,EST,TM2,SSSE3,SDBG,CX16,xTPR,PDCM,SSE4.1,SSE4.2,x2APIC,MOVBE,POPCNT,TSCDLT,AESNI,XSAVE,OSXSAVE,RDRAND>
AMD Features=0x28100800<SYSCALL,NX,RDTSCP,LM>
AMD Features2=0x101<LAHF,Prefetch>
Structured Extended Features=0x2394a2c3<FSGSBASE,TSCADJ,FDPEXC,SMEP,ERMS,NFPUSG,PQE,RDSEED,SMAP,CLFLUSHOPT,CLWB,PROCTRACE,SHA>
Structured Extended Features2=0x18400124<UMIP,WAITPKG,GFNI,RDPID,MOVDIRI,MOVDIR64B>
Structured Extended Features3=0xfc000400<MD_CLEAR,IBPB,STIBP,L1DFL,ARCH_CAP,CORE_CAP,SSBD>
XSAVE Features=0xf<XSAVEOPT,XSAVEC,XINUSE,XSAVES>
IA32_ARCH_CAPS=0xc6b<RDCL_NO,IBRS_ALL,SKIP_L1DFL_VME,MDS_NO>
VT-x: PAT,HLT,MTF,PAUSE,EPT,UG,VPID,VID,PostIntr
TSC: P-state invariant, performance statistics
real memory = 4294967296 (4096 MB)
avail memory = 3973754880 (3789 MB)
Event timer "LAPIC" quality 600
ACPI APIC Table: <GBT GBTUACPI>
WARNING: L1 data cache covers fewer APIC IDs than a core (0 < 1)
FreeBSD/SMP: Multiprocessor System Detected: 4 CPUs
FreeBSD/SMP: 1 package(s) x 4 core(s)
random: registering fast source Intel Secure Key Seed
random: fast provider: "Intel Secure Key Seed"
random: unblocking device.
ioapic0 <Version 2.0> irqs 0-119
Launching APs: 1 2 3
random: entropy device external interface
kbd0 at kbdmux0
efirtc0: <EFI Realtime Clock>
efirtc0: registered as a time-of-day clock, resolution 1.000000s
smbios0: <System Management BIOS> at iomem 0x7ba3e000-0x7ba3e017
smbios0: Entry point: v3 (64-bit), Version: 3.3
aesni0: <AES-CBC,AES-CCM,AES-GCM,AES-ICM,AES-XTS,SHA1,SHA256>
acpi0: <GBT GBTUACPI>
acpi0: Power Button (fixed)
cpu0: <ACPI CPU> on acpi0
hpet0: <High Precision Event Timer> iomem 0xfed00000-0xfed003ff on acpi0
Timecounter "HPET" frequency 19200000 Hz quality 950
Event timer "HPET" frequency 19200000 Hz quality 550
Event timer "HPET1" frequency 19200000 Hz quality 440
Event timer "HPET2" frequency 19200000 Hz quality 440
Event timer "HPET3" frequency 19200000 Hz quality 440
Event timer "HPET4" frequency 19200000 Hz quality 440
atrtc1: <AT realtime clock> on acpi0
atrtc1: Warning: Couldn't map I/O.
atrtc1: registered as a time-of-day clock, resolution 1.000000s
Event timer "RTC" frequency 32768 Hz quality 0
attimer0: <AT timer> port 0x40-0x43,0x50-0x53 irq 0 on acpi0
Timecounter "i8254" frequency 1193182 Hz quality 0
Event timer "i8254" frequency 1193182 Hz quality 100
Timecounter "ACPI-fast" frequency 3579545 Hz quality 900
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x1808-0x180b on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
vgapci0: <VGA-compatible display> port 0x3000-0x303f mem 0x6000000000-0x6000ffffff,0x4000000000-0x400fffffff at device 2.0 on pci0
vgapci0: Boot video device
xhci0: <Intel Elkhart Lake USB 3.1 controller> mem 0x6001000000-0x600100ffff at device 20.0 on pci0
xhci0: 32 bytes context size, 64-bit DMA
xhci0: xECP capabilities <PROTO,PROTO,VEND(c0),LEGACY,VEND(c6),VEND(c7),VEND(c2),DEBUG,VEND(c3),VEND(c4),VEND(ce),VEND(c8),VEND(c9),VEND(ca),VEND(cb),VEND(cc),VEND(cd)>
usbus0 on xhci0
usbus0: 5.0Gbps Super Speed USB v3.0
pci0: <memory, RAM> at device 20.2 (no driver attached)
pci0: <simple comms> at device 22.0 (no driver attached)
ahci0: <Intel Elkhart Lake AHCI SATA controller> port 0x3090-0x3097,0x3080-0x3083,0x3060-0x307f mem 0x80200000-0x80201fff,0x80203000-0x802030ff,0x80202000-0x802027ff at device 23.0 on pci0
ahci0: AHCI v1.31 with 2 6Gbps ports, Port Multiplier not supported
ahcich0: <AHCI channel> at channel 0 on ahci0
ahcich1: <AHCI channel> at channel 1 on ahci0
pcib1: <ACPI PCI-PCI bridge> at device 28.0 on pci0
pci1: <ACPI PCI bus> on pcib1
pcib2: <ACPI PCI-PCI bridge> at device 28.2 on pci0
pci2: <ACPI PCI bus> on pcib2
igb0: <Intel(R) I210 Flashless (Copper)> port 0x4000-0x401f mem 0x80100000-0x8011ffff,0x80120000-0x80123fff at device 0.0 on pci2
igb0: NVM V0.6 imgtype5
igb0: Using 1024 TX descriptors and 1024 RX descriptors
igb0: Using 4 RX queues 4 TX queues
igb0: Using MSI-X interrupts with 5 vectors
igb0: Ethernet address: 74:56:3c:bc:6f:51
igb0: netmap queues/slots: TX 4/1024, RX 4/1024
pcib3: <ACPI PCI-PCI bridge> at device 28.3 on pci0
pci3: <ACPI PCI bus> on pcib3
igb1: <Intel(R) I210 Flashless (Copper)> port 0x5000-0x501f mem 0x80000000-0x8001ffff,0x80020000-0x80023fff at device 0.0 on pci3
igb1: NVM V0.6 imgtype5
igb1: Using 1024 TX descriptors and 1024 RX descriptors
igb1: Using 4 RX queues 4 TX queues
igb1: Using MSI-X interrupts with 5 vectors
igb1: Ethernet address: 74:56:3c:bc:6f:52
igb1: netmap queues/slots: TX 4/1024, RX 4/1024
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
pci0: <serial bus> at device 31.5 (no driver attached)
battery0: <ACPI Control Method Battery> on acpi0
acpi_acad0: <AC Adapter> on acpi0
acpi_button0: <Sleep Button> on acpi0
acpi_button1: <Power Button> on acpi0
acpi_tz0: <Thermal Zone> on acpi0
uart: ns8250: UART FCR is broken (0x1)
uart0: <16950 or compatible> port 0x3f8-0x3ff irq 3 flags 0x10 on acpi0
uart0: console (115200,n,8,1)
acpi_syscontainer0: <System Container> on acpi0
acpi_syscontainer1: <System Container> on acpi0
atrtc0: <AT realtime clock> at port 0x70 irq 8 on isa0
atrtc0: Warning: Couldn't map I/O.
atrtc0: registered as a time-of-day clock, resolution 1.000000s
atrtc0: Can't map interrupt.
atrtc0: non-PNP ISA device will be removed from GENERIC in FreeBSD 16.
hwpstate_intel0: <Intel Speed Shift> on cpu0
cpufreq0: <CPU frequency control> on cpu0
hwpstate_intel1: <Intel Speed Shift> on cpu1
cpufreq1: <CPU frequency control> on cpu1
hwpstate_intel2: <Intel Speed Shift> on cpu2
cpufreq2: <CPU frequency control> on cpu2
hwpstate_intel3: <Intel Speed Shift> on cpu3
cpufreq3: <CPU frequency control> on cpu3
Timecounter "TSC" frequency 1996803123 Hz quality 1000
Timecounters tick every 1.000 msec
ZFS filesystem version: 5
ZFS storage pool version: features support (5000)
ugen0.1: <Intel XHCI root HUB> at usbus0
Trying to mount root from zfs:zroot/ROOT/default []...
uhub0 on usbus0
uhub0: <Intel XHCI root HUB, class 9/0, rev 3.00/1.00, addr 1> on usbus0
ada0 at ahcich1 bus 0 scbus1 target 0 lun 0
ada0: <TS64GMTS960TI-GIG V0906B0> ACS-2 ATA SATA 3.x device
ada0: Serial Number I229074000
ada0: 600.000MB/s transfers (SATA 3.x, UDMA6, PIO 512bytes)
ada0: Command Queueing enabled
ada0: 61057MB (125045424 512 byte sectors)
uhub0: 16 ports with 16 removable, self powered
ichsmb0: <Intel Elkhart Lake SMBus controller> port 0xefa0-0xefbf mem 0x6001014000-0x60010140ff at device 31.4 on pci0
smbus0: <System Management Bus> on ichsmb0
acpi_wmi0: <ACPI-WMI mapping> on acpi0
acpi_wmi0: cannot find EC device
acpi_wmi1: <ACPI-WMI mapping> on acpi0
acpi_wmi1: cannot find EC device
acpi_wmi1: Embedded MOF found
acpi_wmi2: <ACPI-WMI mapping> on acpi0
acpi_wmi2: cannot find EC device
acpi_wmi2: Embedded MOF found
igb0: changing name to 'wan'
igb1: changing name to 'lan'
lo0: link state changed to UP
wan: link state changed to UP
lan: link state changed to UP
lan: link state changed to DOWN
pflog0: promiscuous mode enabled
Security policy loaded: MAC/ntpd (mac_ntpd)
lan: link state changed to UP
load_dn_sched dn_sched FIFO loaded
load_dn_sched dn_sched QFQ loaded
load_dn_sched dn_sched RR loaded
load_dn_sched dn_sched WF2Q+ loaded
load_dn_sched dn_sched PRIO loaded
load_dn_sched dn_sched FQ_CODEL loaded
load_dn_sched dn_sched FQ_PIE loaded
load_dn_aqm dn_aqm CODEL loaded
load_dn_aqm dn_aqm PIE loaded
unload_dn_aqm PIE unloaded
unload_dn_aqm CODEL unloaded
unload_dn_sched dn_sched FQ_PIE unloaded
unload_dn_sched dn_sched FQ_CODEL unloaded
unload_dn_sched dn_sched PRIO unloaded
unload_dn_sched dn_sched WF2Q+ unloaded
unload_dn_sched dn_sched RR unloaded
unload_dn_sched dn_sched QFQ unloaded
unload_dn_sched dn_sched FIFO unloaded
coretemp0: <CPU On-Die Thermal Sensors> on cpu0
And here’s the dmidecode:
# dmidecode 3.7
# SMBIOS entry point at 0x7ba3e000
Found SMBIOS entry point in EFI, reading table from /dev/mem.
SMBIOS 3.3.0 present.
Table at 0x7BA3C000.
Handle 0x0000, DMI type 0, 26 bytes
Platform Firmware Information
Vendor: American Megatrends International, LLC.
Version: F2
Release Date: 12/22/2023
Address: 0xF0000
Runtime Size: 64 KiB
ROM Size: 14 MiB
Characteristics:
PCI is supported
Firmware is upgradeable
Firmware shadowing is allowed
Boot from CD is supported
Selectable boot is supported
Firmware ROM is socketed
EDD is supported
BIOS boot specification is supported
Targeted content distribution is supported
UEFI is supported
Platform Firmware Revision: 5.19
Handle 0x0001, DMI type 1, 27 bytes
System Information
Manufacturer: Seneca
Product Name: PRO1025706
Version: 1.x
Serial Number: 2688483
UUID: 2bbda8da-abde-11ee-9473-bc428b676501
Wake-up Type: Power Switch
SKU Number: Default string
Family: Default string
Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
Manufacturer: GIGABYTE
Product Name: MEHLJES-SD
Version: 1.x
Serial Number: Default string
Asset Tag: Default string
Features:
Board is a hosting board
Board is replaceable
Location In Chassis: Default string
Chassis Handle: 0x0003
Type: Motherboard
Contained Object Handles: 0
Handle 0x0003, DMI type 3, 22 bytes
Chassis Information
Manufacturer: Default string
Type: Desktop
Lock: Not Present
Version: Default string
Serial Number: Default string
Asset Tag: Default string
Boot-up State: Safe
Power Supply State: Safe
Thermal State: Safe
Security Status: None
OEM Information: 0x00000000
Height: Unspecified
Number Of Power Cords: 1
Contained Elements: 0
SKU Number: Default string
Handle 0x0004, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: PS2Mouse
External Connector Type: PS/2
Port Type: Mouse Port
Handle 0x0005, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1A1
Internal Connector Type: None
External Reference Designator: Keyboard
External Connector Type: PS/2
Port Type: Keyboard Port
Handle 0x0006, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A1
Internal Connector Type: None
External Reference Designator: TV Out
External Connector Type: Mini Centronics Type-14
Port Type: Other
Handle 0x0007, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2A
Internal Connector Type: None
External Reference Designator: COM A
External Connector Type: DB-9 male
Port Type: Serial Port 16550A Compatible
Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2A2B
Internal Connector Type: None
External Reference Designator: Video
External Connector Type: DB-15 female
Port Type: Video Port
Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB1
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB2
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3A1
Internal Connector Type: None
External Reference Designator: USB3
External Connector Type: Access Bus (USB)
Port Type: USB
Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9A1 - TPM HDR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9C1 - PCIE DOCKING CONN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2B3 - CPU FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6C2 - EXT HDMI
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J3C1 - GMCH FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1D1 - ITP
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E2 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E4 - MDC INTPSR
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0014, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E3 - LPC HOT DOCKING
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0015, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9E1 - SCAN MATRIX
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0016, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J9G1 - LPC SIDE BAND
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0017, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J8F1 - UNIFIED
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0018, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J6F1 - LVDS
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x0019, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2F1 - LAI FAN
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001A, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J2G1 - GFX VID
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001B, DMI type 8, 9 bytes
Port Connector Information
Internal Reference Designator: J1G6 - AC JACK
Internal Connector Type: Other
External Reference Designator: Not Specified
External Connector Type: None
Port Type: Other
Handle 0x001C, DMI type 9, 17 bytes
System Slot Information
Designation: J6B2
Type: PCI Express
Data Bus Width: 16x or x16
Current Usage: In Use
Length: Long
ID: 0
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:01.0
Handle 0x001D, DMI type 9, 17 bytes
System Slot Information
Designation: J6B1
Type: PCI Express
Data Bus Width: 1x or x1
Current Usage: In Use
Length: Short
ID: 1
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.3
Handle 0x001E, DMI type 9, 17 bytes
System Slot Information
Designation: J6D1
Type: PCI Express
Data Bus Width: 1x or x1
Current Usage: In Use
Length: Short
ID: 2
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.4
Handle 0x001F, DMI type 9, 17 bytes
System Slot Information
Designation: J7B1
Type: PCI Express
Data Bus Width: 1x or x1
Current Usage: In Use
Length: Short
ID: 3
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.5
Handle 0x0020, DMI type 9, 17 bytes
System Slot Information
Designation: J8B4
Type: PCI Express
Data Bus Width: 1x or x1
Current Usage: In Use
Length: Short
ID: 4
Characteristics:
3.3 V is provided
Opening is shared
PME signal is supported
Bus Address: 0000:00:1c.6
Handle 0x0021, DMI type 10, 6 bytes
On Board Device Information
Type: Video
Status: Enabled
Description: To Be Filled By O.E.M.
Handle 0x0022, DMI type 11, 5 bytes
OEM Strings
String 1: Default string
Handle 0x0023, DMI type 12, 5 bytes
System Configuration Options
Option 1: Default string
Handle 0x0024, DMI type 32, 20 bytes
System Boot Information
Status: No errors detected
Handle 0x0025, DMI type 34, 11 bytes
Management Device
Description: LM78-1
Type: LM78
Address: 0x00000000
Address Type: I/O Port
Handle 0x0026, DMI type 26, 22 bytes
Voltage Probe
Description: LM78A
Location: Motherboard
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0027, DMI type 36, 16 bytes
Management Device Threshold Data
Lower Non-critical Threshold: 1
Upper Non-critical Threshold: 2
Lower Critical Threshold: 3
Upper Critical Threshold: 4
Lower Non-recoverable Threshold: 5
Upper Non-recoverable Threshold: 6
Handle 0x0028, DMI type 35, 11 bytes
Management Device Component
Description: Default string
Management Device Handle: 0x0025
Component Handle: 0x0026
Threshold Handle: 0x0027
Handle 0x0029, DMI type 28, 22 bytes
Temperature Probe
Description: LM78A
Location: Motherboard
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x002A, DMI type 36, 16 bytes
Management Device Threshold Data
Lower Non-critical Threshold: 1
Upper Non-critical Threshold: 2
Lower Critical Threshold: 3
Upper Critical Threshold: 4
Lower Non-recoverable Threshold: 5
Upper Non-recoverable Threshold: 6
Handle 0x002B, DMI type 35, 11 bytes
Management Device Component
Description: Default string
Management Device Handle: 0x0025
Component Handle: 0x0029
Threshold Handle: 0x002A
Handle 0x002C, DMI type 27, 15 bytes
Cooling Device
Temperature Probe Handle: 0x0029
Type: Power Supply Fan
Status: OK
Cooling Unit Group: 1
OEM-specific Information: 0x00000000
Nominal Speed: Unknown Or Non-rotating
Description: Cooling Dev 1
Handle 0x002D, DMI type 36, 16 bytes
Management Device Threshold Data
Lower Non-critical Threshold: 1
Upper Non-critical Threshold: 2
Lower Critical Threshold: 3
Upper Critical Threshold: 4
Lower Non-recoverable Threshold: 5
Upper Non-recoverable Threshold: 6
Handle 0x002E, DMI type 35, 11 bytes
Management Device Component
Description: Default string
Management Device Handle: 0x0025
Component Handle: 0x002C
Threshold Handle: 0x002D
Handle 0x002F, DMI type 27, 15 bytes
Cooling Device
Temperature Probe Handle: 0x0029
Type: Power Supply Fan
Status: OK
Cooling Unit Group: 1
OEM-specific Information: 0x00000000
Nominal Speed: Unknown Or Non-rotating
Description: Not Specified
Handle 0x0030, DMI type 36, 16 bytes
Management Device Threshold Data
Lower Non-critical Threshold: 1
Upper Non-critical Threshold: 2
Lower Critical Threshold: 3
Upper Critical Threshold: 4
Lower Non-recoverable Threshold: 5
Upper Non-recoverable Threshold: 6
Handle 0x0031, DMI type 35, 11 bytes
Management Device Component
Description: Default string
Management Device Handle: 0x0025
Component Handle: 0x002F
Threshold Handle: 0x0030
Handle 0x0032, DMI type 29, 22 bytes
Electrical Current Probe
Description: ABC
Location: Motherboard
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0033, DMI type 36, 16 bytes
Management Device Threshold Data
Handle 0x0034, DMI type 35, 11 bytes
Management Device Component
Description: Default string
Management Device Handle: 0x0025
Component Handle: 0x0032
Threshold Handle: 0x0033
Handle 0x0035, DMI type 26, 22 bytes
Voltage Probe
Description: LM78A
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0036, DMI type 28, 22 bytes
Temperature Probe
Description: LM78A
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0037, DMI type 27, 15 bytes
Cooling Device
Temperature Probe Handle: 0x0036
Type: Power Supply Fan
Status: OK
Cooling Unit Group: 1
OEM-specific Information: 0x00000000
Nominal Speed: Unknown Or Non-rotating
Description: Cooling Dev 1
Handle 0x0038, DMI type 29, 22 bytes
Electrical Current Probe
Description: ABC
Location: Power Unit
Status: OK
Maximum Value: Unknown
Minimum Value: Unknown
Resolution: Unknown
Tolerance: Unknown
Accuracy: Unknown
OEM-specific Information: 0x00000000
Nominal Value: Unknown
Handle 0x0039, DMI type 39, 22 bytes
System Power Supply
Power Unit Group: 1
Location: To Be Filled By O.E.M.
Name: To Be Filled By O.E.M.
Manufacturer: To Be Filled By O.E.M.
Serial Number: To Be Filled By O.E.M.
Asset Tag: To Be Filled By O.E.M.
Model Part Number: To Be Filled By O.E.M.
Revision: To Be Filled By O.E.M.
Max Power Capacity: Unknown
Status: Present, OK
Type: Switching
Input Voltage Range Switching: Auto-switch
Plugged: Yes
Hot Replaceable: No
Input Voltage Probe Handle: 0x0035
Cooling Device Handle: 0x0037
Input Current Probe Handle: 0x0038
Handle 0x003A, DMI type 44, 9 bytes
Unknown Type
Header and Data:
2C 09 3A 00 FF FF 01 01 00
Handle 0x003B, DMI type 43, 31 bytes
TPM Device
Vendor ID: INTC
Specification Version: 2.0
Firmware Revision: 600.15
Description: INTEL
Characteristics:
Family configurable via platform software support
OEM-specific Information: 0x00000000
Handle 0x003C, DMI type 16, 23 bytes
Physical Memory Array
Location: System Board Or Motherboard
Use: System Memory
Error Correction Type: None
Maximum Capacity: 16 GiB
Error Information Handle: Not Provided
Number Of Devices: 2
Handle 0x003F, DMI type 19, 31 bytes
Memory Array Mapped Address
Starting Address: 0x00000000000
Ending Address: 0x000FFFFFFFF
Range Size: 4 GiB
Physical Array Handle: 0x003C
Partition Width: 1
Handle 0x0040, DMI type 221, 26 bytes
OEM-specific Type
Header and Data:
DD 1A 40 00 03 01 00 09 03 27 34 00 02 00 00 00
00 14 00 03 00 FF FF FF FF FF
Strings:
Reference Code - CPU
uCode Version
TXT ACM version
Handle 0x0041, DMI type 221, 26 bytes
OEM-specific Type
Header and Data:
DD 1A 41 00 03 01 00 09 03 27 34 00 02 00 00 00
00 00 00 03 04 0F 28 0F 70 09
Strings:
Reference Code - ME
MEBx version
ME Firmware Version
Consumer SKU
Handle 0x0042, DMI type 221, 47 bytes
OEM-specific Type
Header and Data:
DD 2F 42 00 06 01 00 09 03 27 34 00 02 03 FF FF
FF FF FF 04 00 FF FF FF 11 00 05 00 FF FF FF 11
00 06 00 FF FF FF FF FF 07 00 04 00 00 00 00
Strings:
Reference Code - PCH
PCH-CRID Status
Disabled
PCH-CRID Original Value
PCH-CRID New Value
OPROM - RST - RAID
PCH Hsio Version
Handle 0x0043, DMI type 221, 54 bytes
OEM-specific Type
Header and Data:
DD 36 43 00 07 01 00 09 03 27 34 00 02 00 00 00
04 68 00 03 00 09 03 27 34 00 04 05 FF FF FF FF
FF 06 00 00 00 00 01 00 07 00 00 00 00 01 00 08
00 FF FF FF FF FF
Strings:
Reference Code - SA - System Agent
Reference Code - MRC
SA - PCIe Version
SA-CRID Status
Disabled
SA-CRID Original Value
SA-CRID New Value
OPROM - VBIOS
Handle 0x0044, DMI type 221, 12 bytes
OEM-specific Type
Header and Data:
DD 0C 44 00 01 01 00 04 00 00 00 00
Strings:
FSP Binary Version
Handle 0x0045, DMI type 7, 27 bytes
Cache Information
Socket Designation: L1 Cache
Configuration: Enabled, Not Socketed, Level 1
Operational Mode: Write Back
Location: Internal
Installed Size: 0 KiB
Maximum Size: 0 KiB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Parity
System Type: Unified
Associativity: 8-way Set-associative
Handle 0x0046, DMI type 7, 27 bytes
Cache Information
Socket Designation: L2 Cache
Configuration: Enabled, Not Socketed, Level 2
Operational Mode: Write Back
Location: Internal
Installed Size: 0 KiB
Maximum Size: 0 KiB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Single-bit ECC
System Type: Unified
Associativity: 12-way Set-associative
Handle 0x0047, DMI type 7, 27 bytes
Cache Information
Socket Designation: L3 Cache
Configuration: Enabled, Not Socketed, Level 3
Operational Mode: Write Back
Location: Internal
Installed Size: 0 KiB
Maximum Size: 0 KiB
Supported SRAM Types:
Synchronous
Installed SRAM Type: Synchronous
Speed: Unknown
Error Correction Type: Multi-bit ECC
System Type: Unified
Associativity: 16-way Set-associative
Handle 0x0048, DMI type 4, 48 bytes
Processor Information
Socket Designation: U3E1
Type: Central Processor
Family: Celeron
Manufacturer: Intel(R) Corporation
ID: 61 06 09 00 FF FB EB BF
Signature: Type 0, Family 6, Model 150, Stepping 1
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
DS (Debug store)
ACPI (ACPI supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
SS (Self-snoop)
HTT (Multi-threading)
TM (Thermal monitor supported)
PBE (Pending break enabled)
Version: Intel(R) Celeron(R) J6412 @ 2.00GHz
Voltage: 0.8 V
External Clock: 100 MHz
Max Speed: 2600 MHz
Current Speed: 1980 MHz
Status: Populated, Enabled
Upgrade: Other
L1 Cache Handle: 0x0045
L2 Cache Handle: 0x0046
L3 Cache Handle: 0x0047
Serial Number: To Be Filled By O.E.M.
Asset Tag: To Be Filled By O.E.M.
Part Number: To Be Filled By O.E.M.
Core Count: 4
Core Enabled: 4
Thread Count: 4
Characteristics:
64-bit capable
Multi-Core
Execute Protection
Enhanced Virtualization
Power/Performance Control
Handle 0x0049, DMI type 17, 100 bytes
Memory Device
Array Handle: 0x003C
Error Information Handle: Not Provided
Total Width: Unknown
Data Width: Unknown
Size: No Module Installed
Form Factor: Unknown
Set: None
Locator: Controller0-ChannelA-DIMM0
Bank Locator: BANK 0
Type: Unknown
Type Detail: None
Handle 0x004A, DMI type 17, 100 bytes
Memory Device
Array Handle: 0x003C
Error Information Handle: Not Provided
Total Width: 64 bits
Data Width: 64 bits
Size: 4 GiB
Form Factor: SODIMM
Set: None
Locator: Controller0-ChannelB
Bank Locator: BANK 1
Type: DDR4
Type Detail: Synchronous
Speed: 3200 MT/s
Manufacturer: Transcend Information
Serial Number: 00003064
Asset Tag: 9876543210
Part Number: TS512MSH64V2DI-GIG
Rank: 1
Configured Memory Speed: 3200 MT/s
Minimum Voltage: 1.2 V
Maximum Voltage: 1.2 V
Configured Voltage: 1.2 V
Memory Technology: DRAM
Memory Operating Mode Capability: Volatile memory
Firmware Version: Not Specified
Module Manufacturer ID: Bank 2, Hex 0x4F
Module Product ID: Unknown
Memory Subsystem Controller Manufacturer ID: Unknown
Memory Subsystem Controller Product ID: Unknown
Non-Volatile Size: None
Volatile Size: 4 GiB
Cache Size: None
Logical Size: None
PMIC0 Manufacturer ID: Unknown
PMIC0 Revision Number: 0x0000
RCD Manufacturer ID: Unknown
RCD Revision Number: 0x0000
Handle 0x004B, DMI type 20, 35 bytes
Memory Device Mapped Address
Starting Address: 0x00000000000
Ending Address: 0x000FFFFFFFF
Range Size: 4 GiB
Physical Device Handle: 0x004A
Memory Array Mapped Address Handle: 0x003F
Partition Row Position: Unknown
Handle 0x004C, DMI type 131, 64 bytes
OEM-specific Type
Header and Data:
83 40 4C 00 31 00 00 00 00 00 00 00 00 00 00 00
F8 00 00 4B 00 00 00 00 01 00 00 00 28 00 0F 00
70 09 0F 00 00 00 00 00 FE 00 FF FF 00 00 00 00
00 00 00 00 22 00 00 00 76 50 72 6F 00 00 00 00
Handle 0x004D, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:00.0
Handle 0x004E, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Video
Type: Video
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:02.0
Handle 0x004F, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 2
Bus Address: 0000:00:08.0
Handle 0x0050, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 3
Bus Address: 0000:00:14.0
Handle 0x0051, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 4
Bus Address: 0000:00:14.2
Handle 0x0052, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 5
Bus Address: 0000:00:16.0
Handle 0x0053, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - SATA
Type: SATA Controller
Status: Enabled
Type Instance: 1
Bus Address: 0000:00:17.0
Handle 0x0054, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 6
Bus Address: 0000:00:1f.0
Handle 0x0055, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 7
Bus Address: 0000:00:1f.4
Handle 0x0056, DMI type 41, 11 bytes
Onboard Device
Reference Designation: Onboard - Other
Type: Other
Status: Enabled
Type Instance: 8
Bus Address: 0000:00:1f.5
Handle 0x0057, DMI type 221, 89 bytes
OEM-specific Type
Header and Data:
DD 59 57 00 0C 01 00 FF FF FF FF FF 02 00 FF FF
FF FF FF 03 04 FF FF FF FF FF 05 06 FF FF FF FF
FF 07 08 FF FF FF FF FF 09 00 00 00 00 00 00 0A
00 FF FF FF FF FF 0B 00 FF FF FF FF FF 0C 00 00
18 00 34 10 0D 00 FF FF FF FF FF 0E 00 00 07 00
00 00 0F 00 00 02 00 0F 00
Strings:
Lan Phy Version
Sensor Firmware Version
Debug Mode Status
Disabled
Performance Mode Status
Disabled
Debug Use USB(Disabled:Serial)
Disabled
ICC Overclocking Version
UNDI Version
EC FW Version
GOP Version
Royal Park Version
Platform Version
Client Silicon Version
Handle 0x0058, DMI type 14, 8 bytes
Group Associations
Name: $MEI
Items: 1
0x0000 (OEM-specific)
Handle 0x0059, DMI type 219, 106 bytes
OEM-specific Type
Header and Data:
DB 6A 59 00 01 04 01 55 02 00 90 06 01 85 39 20
00 00 00 00 40 00 00 00 00 00 00 02 00 40 00 02
FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
FF FF FF FF FF FF FF FF 03 00 00 00 80 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 04 FF FF FF FF FF FF FF FF FF FF FF FF FF FF
FF FF FF FF FF FF FF FF FF FF
Strings:
MEI1
MEI2
MEI3
MEI4
Handle 0x005A, DMI type 136, 6 bytes
OEM-specific Type
Header and Data:
88 06 5A 00 00 00
Handle 0x005B, DMI type 13, 22 bytes
Firmware Language Information
Language Description Format: Long
Installable Languages: 1
en|US|iso8859-1
Currently Installed Language: en|US|iso8859-1
Handle 0x005C, DMI type 127, 4 bytes
End Of Table
